Counter-UAS
Catalogue.

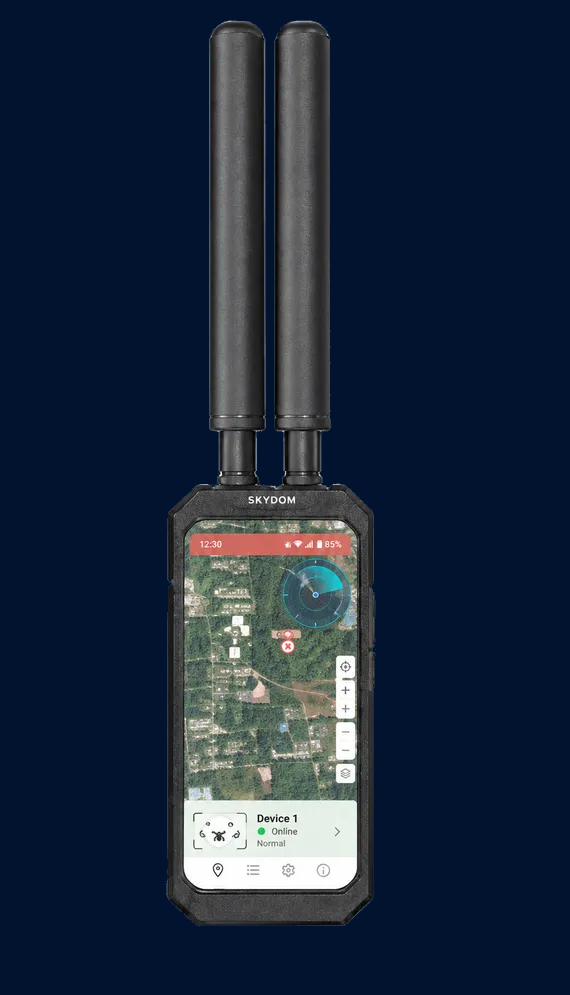

Detection methods

Protocol analysis, spectrum sensing and Remote ID

Detection band

70 MHz–6 GHz

Positioning range

≥ 3 km

Positioning accuracy

≤ 5 m

Dimensions

216 × 85 × 40 mm

Weight

850 ± 10 g

Battery

7,500 mAh

Display

6.8-inch OLED

Management

Blacklist / whitelist, flight history, detection statistics and alarms

Specifications: product brochure, page 2. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

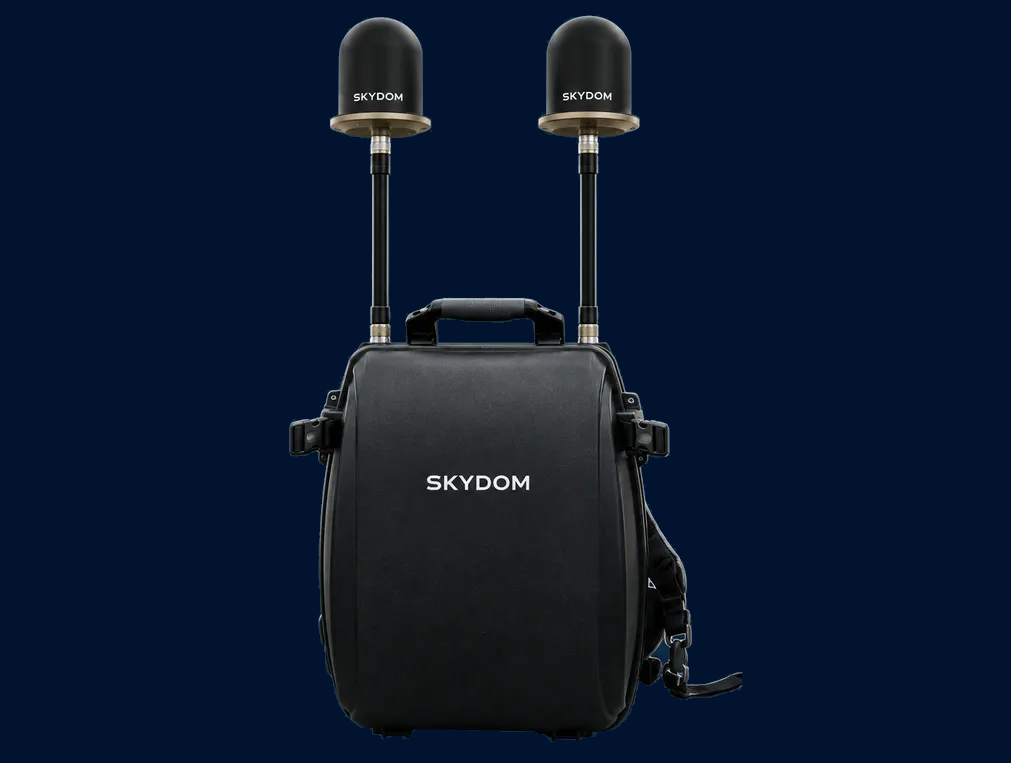

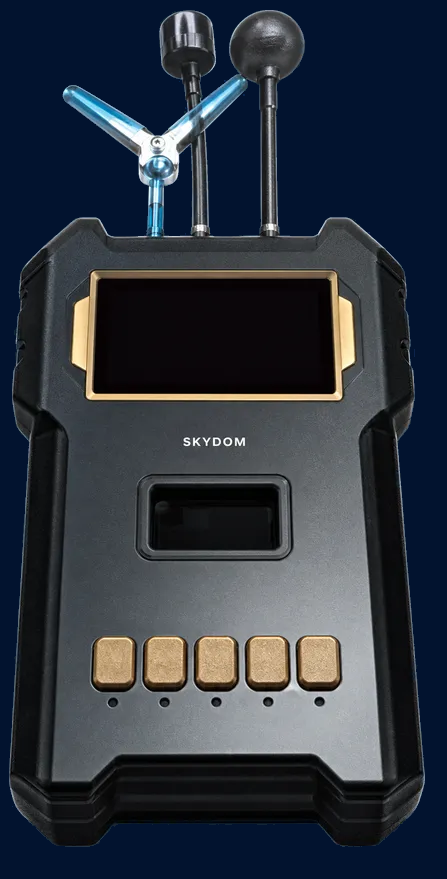

Detection bands

1,000–2,100 MHz / 3,100–4,100 MHz / 4,900–6,100 MHz

Detection range

> 4 km under specified test conditions

Test conditions

1 W video transmitter, target height 80 m, line of sight

Single-band scan

3 seconds

Battery life

> 8 hours per battery

Charging

Adapter and Type-C

Weight

400 g including one battery

Dimensions

178 × 110 × 36 mm, excluding antenna

Optional upgrade

6,110–7,190 MHz and battery upgrades

Specifications: product brochure, page 3. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

A matching specification sheet was not provided. Contact SKYDOM GLOBAL for confirmed model specifications.

Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

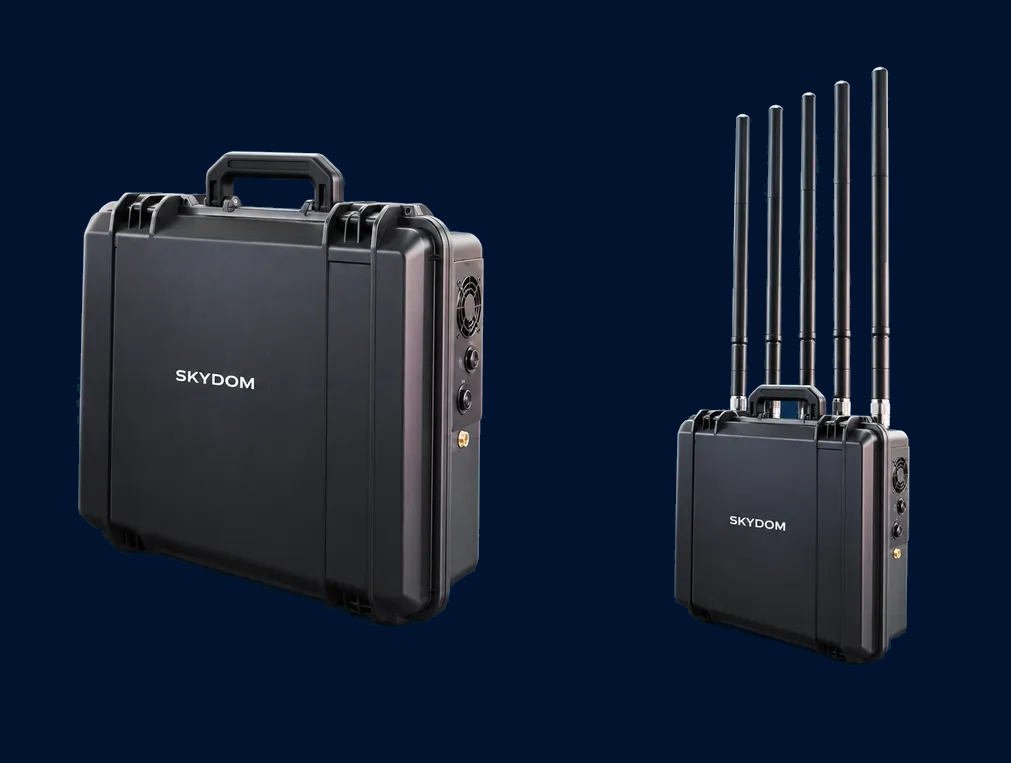

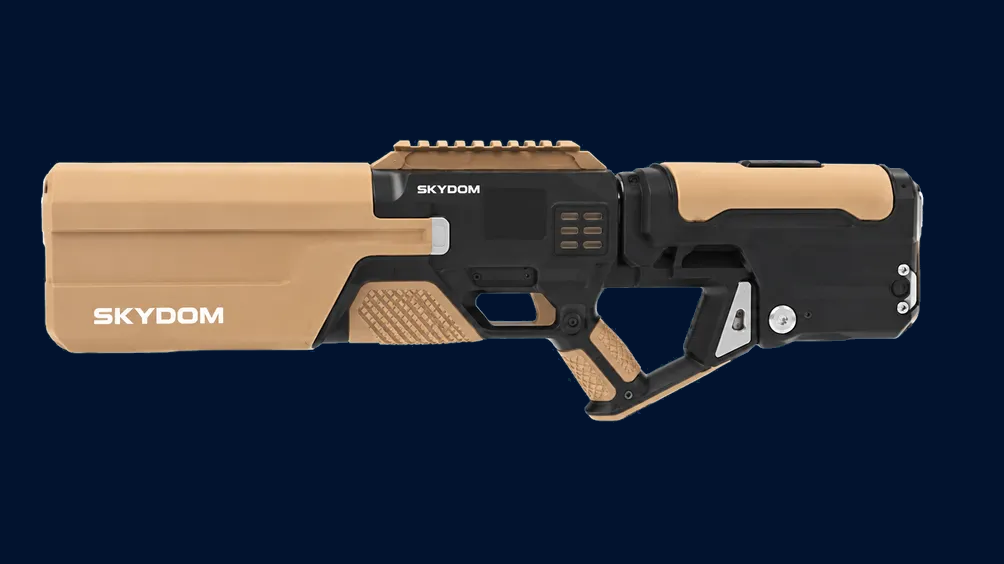

Channels

6

Frequency bands

800 MHz / 900 MHz / 1.2 GHz / 1.5 GHz / 2.4 GHz / 5.8 GHz

Operating range

≥ 1.5 km

Coverage angle

Horizontal ≥ 45°; vertical ≥ 60°

Response time

≤ 3 seconds

Operating time

≥ 50 minutes

Protection

IP65

Weight

≤ 5.5 kg

Dimensions

≤ 770 × 300 × 70 mm

Battery

24 V, 9,500 mAh; external power supported

Power display

Embedded LCD

Output power

≥ 20 W per band; ≥ 30 W at 2.4 / 5.8 GHz

Specifications: product brochure, page 4. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

A matching specification sheet was not provided. Contact SKYDOM GLOBAL for confirmed model specifications.

Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

A matching specification sheet was not provided. Contact SKYDOM GLOBAL for confirmed model specifications.

Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

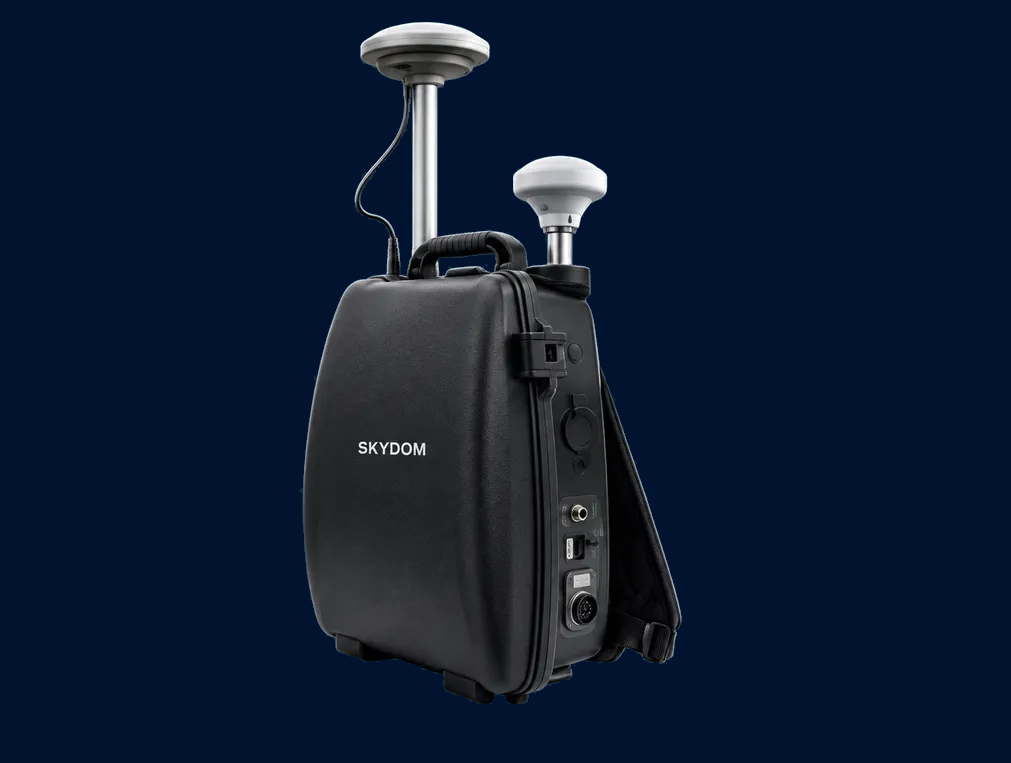

Detection band

70 MHz–6 GHz

Control bands

900 MHz / 1.6 GHz / 2.4 GHz / 5.2 GHz / 5.8 GHz

Coverage

360° horizontal

Detection range

≥ 5 km

Countermeasure range

≥ 1.5 km

Navigation countermeasure range

≥ 5 km

Positioning

GPS

Management

Whitelist, detection statistics and alarm status

Power display

Battery level indicator

Specifications: product brochure, page 5. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

A matching specification sheet was not provided. Contact SKYDOM GLOBAL for confirmed model specifications.

Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

A matching specification sheet was not provided. Contact SKYDOM GLOBAL for confirmed model specifications.

Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

Detection band

25 MHz–6 GHz

Coverage

360°

Warning range

5 km

Tracking capacity

50 drones and 20 remote controls

Protocol support

DJI O1–O4

Information

Coordinates, altitude, model and serial number

Protection

IP66

Management

Automatic alarms, whitelist / blacklist and map operations

Maintenance

Remote upgrades and model-library updates

Specifications: product brochure, page 6. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

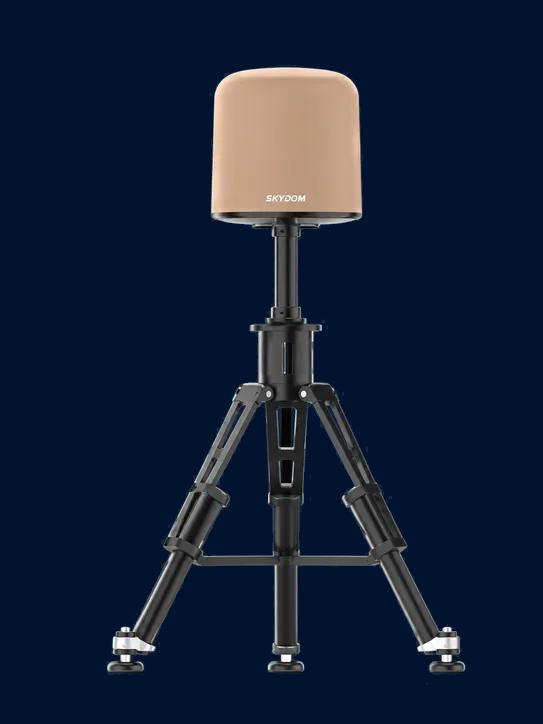

Identification

AOA, protocol analysis and Remote ID

Detection band

70 MHz–6 GHz

Key detection bands

433 / 840 / 915 MHz; 1.4 / 2.4 / 5.2 / 5.8 GHz

Identification response

≤ 2 seconds

Detection range

≥ 10 km

Detection height

0–1,000 m

Coverage

360° horizontal; −40° to +90° vertical

Direction accuracy

≤ 3° RMS

Countermeasure range

≥ 3 km

Operating bands

900 MHz; 1.2 / 1.4 / 1.5 / 2.4 / 5.2 / 5.8 GHz

Protection

IP66

Operating temperature

−40°C to +55°C

Specifications: product brochure, page 7. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

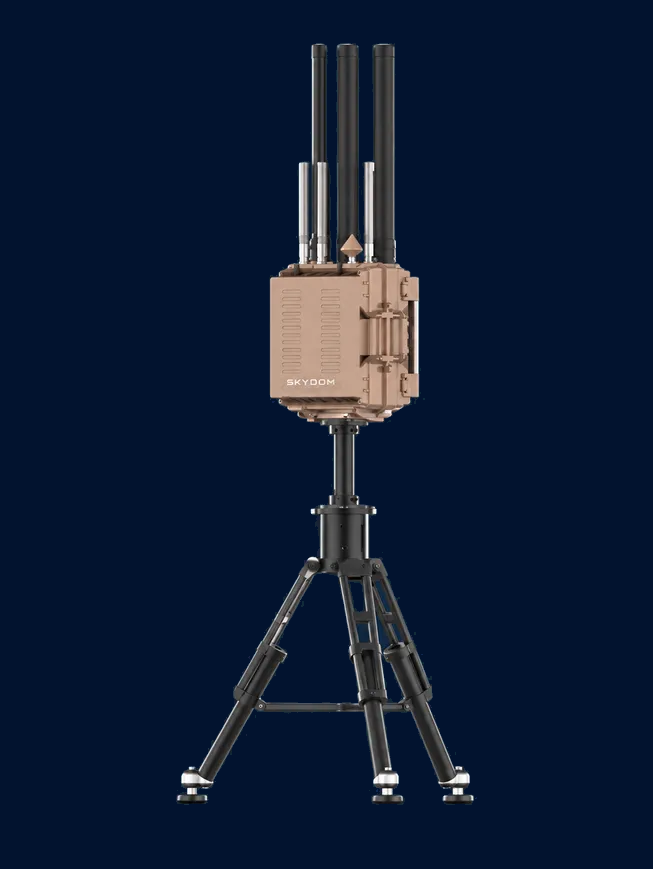

Operating band

400–6,000 MHz

Band control

Individual module switching and independent grouped control

Installation

Fixed site or customised vehicle

Navigation countermeasure range

≥ 4 km, DJI Mavic 3 in line-of-sight conditions

Specifications: product brochure, page 13. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

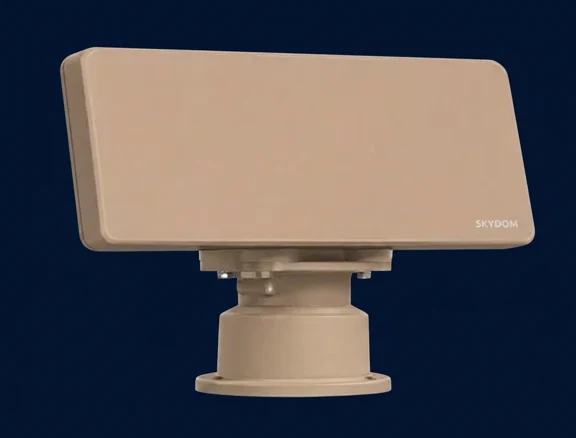

Radar band

X-band, 9.8–10 GHz

Bandwidth

≤ 50 MHz

Transmit power

≤ 40 W

Azimuth

360°

Elevation

−5° to +60°

Blind zone

≤ 50 m

Range accuracy

≤ 5 m RMS

Small UAV detection

≥ 8 km at RCS 0.01 m²

Medium fixed-wing detection

≥ 20 km at RCS 1 m²

Personnel detection

≥ 12 km

Helicopter / vehicle detection

≥ 20 km

Maximum detection height

≥ 3,000 m

Alternative configurations

3 km / 5 km / 12 km

Specifications: product brochure, page 9. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

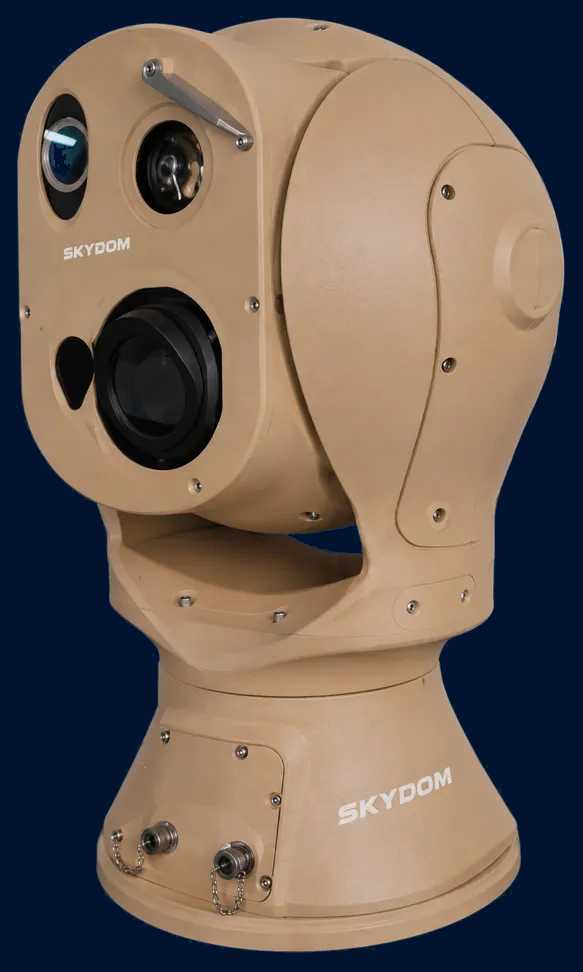

Visible detection / tracking / recognition

≥ 5,000 m / ≥ 4,000 m / ≥ 3,000 m

Thermal detection / tracking / recognition

≥ 2,000 m / ≥ 1,500 m / ≥ 1,000 m

Reference target

0.3 × 0.3 m UAV; RCS 0.01 m²

Thermal detector

Uncooled VOx; 8–14 μm

Thermal resolution

640 × 512

Visible sensor

1/1.8-inch starlight CMOS, ICR

Visible resolution

2688 × 1520

Minimum illumination

Colour 0.002 Lux; B/W 0.0002 Lux

Specifications: product brochure, page 8. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

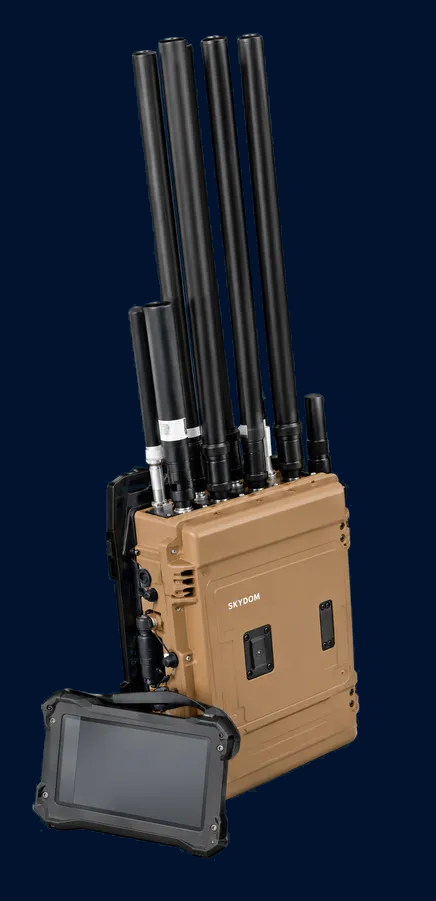

Detection distance

≥ 3.5 km

Detection coverage

360°

Detection time

≤ 3 seconds

Countermeasure range

≥ 1.5 km

Navigation countermeasure range

≥ 1 km

Navigation response

≤ 5 seconds

Host weight

≤ 8.5 kg

Battery

≥ 10 Ah

Protection

IP65

Detection endurance

≥ 24 hours

Full-band operating time

≥ 30 minutes

Operating environment

−35°C to +65°C

Specifications: product brochure, page 12. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

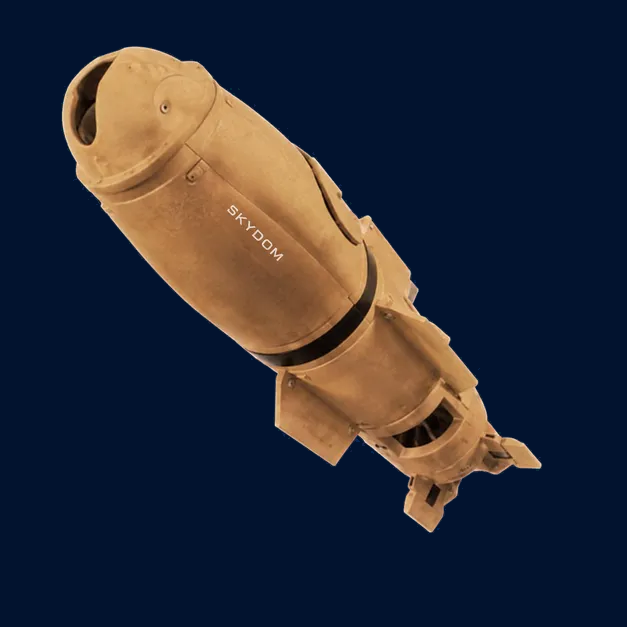

Product class

Electric-propulsion interception

Operating conditions

Day and night

Specialist equipment. Configuration and deployment are subject to regulatory approval and controlled technical review.

Specifications: product brochure, page 10. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.

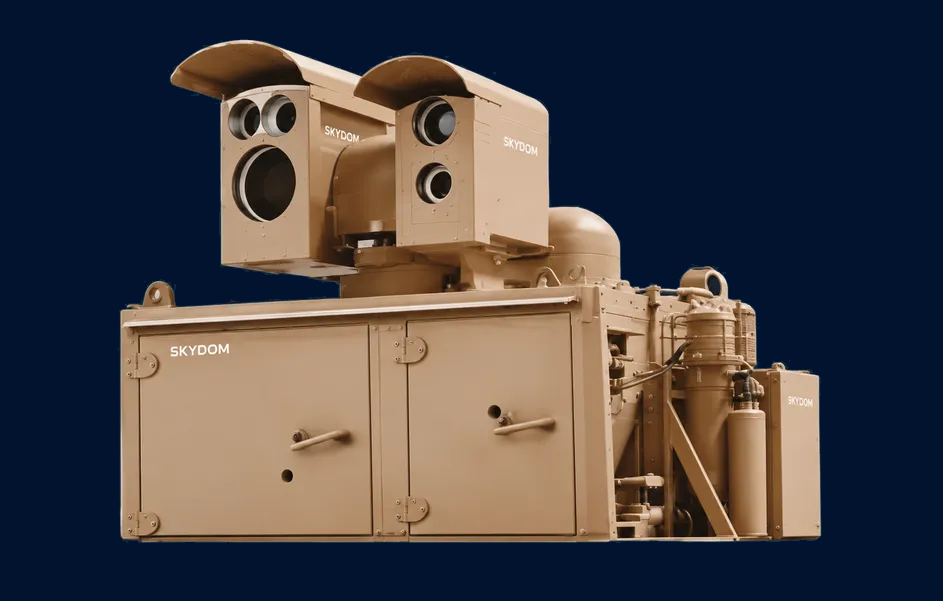

Product class

Laser countermeasure equipment

Installation

Fixed-position or vehicle-mounted

Subsystems

Laser equipment, acquisition / tracking and integrated control

The family is shown as a single configuration. Variant specifications are confirmed by enquiry.

Specifications: product brochure, page 11. Performance depends on configuration, target and operating conditions. Authorised use and applicable approvals are required.
